# 实验RRPP相交环配置及排错

## 实验目的

**完成本实验，您应该能够：**

* **掌握RRPP相交环配置方法**
* **掌握RRPP协议运行情况**

## 实验拓扑图及IP规划

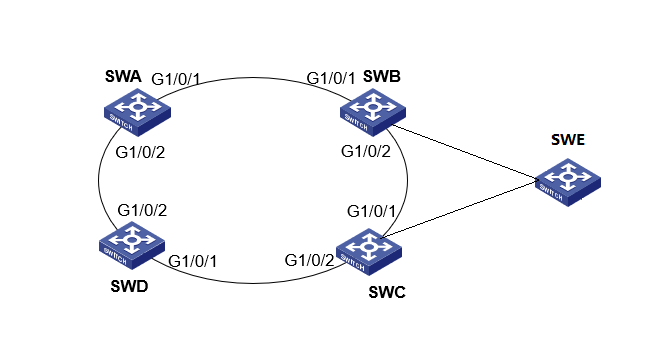

**实验拓扑图**

![](/img/356b5523c5d531da04a3bffefbbff6ff.png?lastModify=1667872504)

**图1 RRPP单环配置及排错**

**IP地址规划：**

| **设备名称** | **VLAN 编号**  | **端口**           | **说明**     |
| -------------- | ---------------- | -------------------- | -------------- |
| **SWA**      | **VLAN 4092**  | **G1/0/1至G1/0/2** | **控制VLAN** |
|              | **VLAN 1～30** | **G1/0/1至G1/0/2** | **保护VLAN** |
| **SWB**      | **VLAN 4092**  | **G1/0/1至G1/0/2** | **控制VLAN** |
|              | **VLAN 1～30** | **G1/0/1至G1/0/2** | **保护VLAN** |
| **SWC**      | **VLAN 4092**  | **G1/0/1至G1/0/2** | **控制VLAN** |
|              | **VLAN 1～30** | **G1/0/1至G1/0/2** | **保护VLAN** |
| **SWD**      | **VLAN 4092**  | **G1/0/1至G1/0/2** | **控制VLAN** |
|              | **VLAN 1～30** | **G1/0/1至G1/0/2** | **保护VLAN** |
| **SWE**      | **VLAN 4092**  | **G1/0/1至G1/0/2** | **控制VLAN** |
|              | **VLAN 1～30** | **G1/0/1至G1/0/2** | **保护VLAN** |

**表1 RRPP单环配置及排错**

## 实验过程

### 实验任务一：RRPP单环配置

**本实验任务主要是通过RRPP协议解决二层网络环路问题，；RRPP 是专门应用于以太网环的链路层协议，具有比生成树协议更快的收敛速度，当以太网环完整时它能够防止数据环路引起的广播风暴，且收敛时间与环网上节点数无关，可应用于网络直径较大的网络**

#### 步骤一：基本配置

**按照图1搭建实验环境，给设备改名，根据表1为所有设备配置相应VLAN，配置参考基本实验配置。**

#### 步骤二：创建MST域

**配置SWA：**

**[SWA]vlan 1 to 30**

**[SWA]stp region-configuration**

**[SWA-mst-region]instance 1 vlan 1 to 30**

**[SWA-mst-region]active region-configuration**

**配置SWB：**

**[SWB]vlan 1 to 30**

**[SWB]stp region-configuration**

**[SWB-mst-region] instance 1 vlan 1 to 30**

**[SWB-mst-region] active region-configuration**

**配置SWC：**

**[SWC]vlan 1 to 30**

**[SWC]stp region-configuration**

**[SWC-mst-region] instance 1 vlan 1 to 30**

**[SWC-mst-region] active region-configuration**

**配置SWD：**

**[SWD] vlan 1 to 30**

**[SWD]stp region-configuration**

**[SWD-mst-region] instance 1 vlan 1 to 30**

**[SWD-mst-region] active region-configuration**

**配置SWE：**

<**SWE**>** system-view**

**[SWE] vlan 1 to 30**

**[SWE] stp region-configuration**

**[SWE-mst-region] instance 1 vlan 1 to 30**

**[SWE-mst-region] active region-configuration**

**[SWE-mst-region] quit**

#### 步骤三：设置端口类型为TRUNK

**分别在端口G1/0/1和G1/0/2上配置物理连接状态up/down抑制时间为0 秒（即不抑制），关闭生成树协议，并将端口配置为 Trunk 端口且允许 VLAN 1～30 通过：**

**配置SWA：**

**[SWA]interface GigabitEthernet 1/0/1**

**[SWA-GigabitEthernet1/0/1]link-delay 0**

**[SWA-GigabitEthernet1/0/1]undo stp enable**

**[SWA-GigabitEthernet1/0/1]port link-type trunk**

**[SWA-GigabitEthernet1/0/1]port trunk permit vlan 1 to 30**

**[SWA]interface GigabitEthernet 1/0/2**

**[SWA-GigabitEthernet1/0/2]link-delay 0**

**[SWA-GigabitEthernet1/0/2]undo stp enable**

**[SWA-GigabitEthernet1/0/2]port link-type trunk**

**[SWA-GigabitEthernet1/0/2]port trunk permit vlan 1 to 30**

**配置SWB：**

**[SWB]interface GigabitEthernet1/0/1**

**[SWB-GigabitEthernet1/0/1] port link-mode bridge**

**[SWB-GigabitEthernet1/0/1] port link-type trunk**

**[SWB-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30**

**[SWB-GigabitEthernet1/0/1] link-delay 0**

**[SWB-GigabitEthernet1/0/1] undo stp enable**

**[SWB-GigabitEthernet1/0/1]interface GigabitEthernet 1/0/2**

**[SWB-GigabitEthernet1/0/2] port link-mode bridge**

**[SWB-GigabitEthernet1/0/2] port link-type trunk**

**[SWB-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30**

**[SWB-GigabitEthernet1/0/2] link-delay 0**

**[SWB-GigabitEthernet1/0/2] undo stp enable**

**配置SWC：**

**[SWC]interface GigabitEthernet1/0/1**

**[SWC-GigabitEthernet1/0/1] port link-mode bridge**

**[SWC-GigabitEthernet1/0/1] port link-type trunk**

**[SWC-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30**

**[SWC-GigabitEthernet1/0/1] link-delay 0**

**[SWC-GigabitEthernet1/0/1] undo stp enable**

**[SWC-GigabitEthernet1/0/1]interface GigabitEthernet 1/0/2**

**[SWC-GigabitEthernet1/0/2] port link-mode bridge**

**[SWC-GigabitEthernet1/0/2] port link-type trunk**

**[SWC-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30**

**[SWC-GigabitEthernet1/0/2] link-delay 0**

**[SWC-GigabitEthernet1/0/2] undo stp enable**

**配置SWD：**

**[SWD]interface GigabitEthernet1/0/1**

**[SWD-GigabitEthernet1/0/1] port link-mode bridge**

**[SWD-GigabitEthernet1/0/1] port link-type trunk**

**[SWD-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30**

**[SWD-GigabitEthernet1/0/1] link-delay 0**

**[SWD-GigabitEthernet1/0/1] undo stp enable**

**[SWD-GigabitEthernet1/0/1]interface GigabitEthernet 1/0/2**

**[SWD-GigabitEthernet1/0/2] port link-mode bridge**

**[SWD-GigabitEthernet1/0/2] port link-type trunk**

**[SWD-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30**

**[SWD-GigabitEthernet1/0/2] link-delay 0**

**[SWD-GigabitEthernet1/0/2] undo stp enable**

**配置SWE：**

**[SWE] interface ethernet 1/0/1**

**[SWE-Ethernet1/0/1] undo link-delay**

**[SWE-Ethernet1/0/1] undo stp enable**

**[SWE-Ethernet1/0/1] qos trust dot1p**

**[SWE-Ethernet1/0/1] port link-type trunk**

**[SWE-Ethernet1/0/1] port trunk permit vlan 1 to 30**

**[SWE-Ethernet1/0/1] quit**

**[SWE] interface ethernet 1/0/2**

**[SWE-Ethernet1/0/2] undo link-delay**

**[SWE-Ethernet1/0/2] undo stp enable**

**[SWE-Ethernet1/0/2] qos trust dot1p**

**[SWE-Ethernet1/0/2] port link-type trunk**

**[SWE-Ethernet1/0/2] port trunk permit vlan 1 to 30**

**[SWE-Ethernet1/0/2] quit**

#### 步骤四：创建 RRPP 域

**将 VLAN 4092 配置为该域的主控制 VLAN，并将 MSTI 1 所映射的 VLAN 配置 为该域的保护 VLAN；**

**配置本设备为主环Ring 1的主节点，主端口为G1/0/1，副端口为G1/0/2， 并开启该环，配置子环Ring 2的辅助边缘节点，边缘端口为Ethernet1/0/3，并使能该环。**

**配置SWA：**

**[SWA] rrpp enable**

**[SWA] rrpp domain 1**

**[SWA-rrpp-domain1] control-vlan 4092**

**[SWA-rrpp-domain1] protected-vlan reference-instance 1**

**[SWA-rrpp-domain1] ring 1 node-mode master primary-port GigabitEthernet 1/0/1 secondary-port GigabitEthernet 1/0/2 level 0**

**[SWA-rrpp-domain1] ring 1 enable**

**[SWA-rrpp-domain1] quit**

**配置SWB：**

**[SWB] rrpp enable**

**[SWB]rrpp domain 1**

**[SWB-rrpp-domain1] control-vlan 4092**

**[SWB-rrpp-domain1] protected-vlan reference-instance 1**

**[SWB-rrpp-domain1]ring 1 node-mode transit primary-port GigabitEthernet1/0/1 secondary-port GigabitEthernet1/0/2 level 0**

**[SWB-rrpp-domain1] ring 1 enable**

**[SWB-rrpp-domain1] ring 2 node-mode edge edge-port ethernet 1/0/3**

**[SWB-rrpp-domain1] ring 2 enable**

**[SWB-rrpp-domain1] quit**

**配置SWC：**

**[SWC] rrpp enable**

**[SWC]rrpp domain 1**

**[SWC-rrpp-domain1] control-vlan 4092**

**[SWC-rrpp-domain1] protected-vlan reference-instance 1**

**[SWC-rrpp-domain1]ring 1 node-mode transit primary-port GigabitEthernet1/0/1 secondary-port GigabitEthernet1/0/2 level 0**

**[SWC-rrpp-domain1] ring 1 enable**

**[SWC-rrpp-domain1] ring 2 node-mode assistant-edge edge-port ethernet 1/0/3**

**[SWC-rrpp-domain1] ring 2 enable**

**[SWC-rrpp-domain1] quit**

**配置SWD：**

**[SWD] rrpp enable**

**[SWD]rrpp domain 1**

**[SWD-rrpp-domain1] control-vlan 4092**

**[SWD-rrpp-domain1] protected-vlan reference-instance 1**

**[SWD-rrpp-domain1]ring 1 node-mode transit primary-port GigabitEthernet1/0/1 secondary-port GigabitEthernet1/0/2 level 0**

**[SWD-rrpp-domain1] ring 1 enable**

**[SWD-rrpp-domain1] quit**

**配置SWE：**

**[SWE] rrpp domain 1**

**[SWE-rrpp-domain1] control-vlan 4092**

**[SWE-rrpp-domain1] protected-vlan reference-instance 1**

**[SWE-rrpp-domain1] ring 2 node-mode master primary-port ethernet 1/0/1 secondary-port ethernet 1/0/2 level 1**

**[SWE-rrpp-domain1] ring 2 enable**

**[SWE-rrpp-domain1] quit**

**[SWE] rrpp enable**

#### 步骤五：显示RRPP运行情况

**配置完成后，用户可以使用 display 命令显示各设备上 RRPP 的配置和运行情况**

**[SWA]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 242 0 1 0 0 0 243**

**In 0 0 1 0 0 0 1**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 0 0 0 0 0**

**[SWB]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 367 0 1 0 0 0 368**

**In 0 0 0 0 0 0 0**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 0 0 0 0 0**

**[SWC]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-----------------------------------------------------------------------------**

**Out 966 0 1 0 0 0 967**

**In 0 0 1 0 0 0 1**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-----------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 1 0 0 0 1**

**[SWD]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 1055 0 1 0 0 0 1056**

**In 0 0 0 0 0 0 0**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 1 0 0 0 1**

### 实验任务二：主节点收不到Hello报文排错

#### 步骤一：把SWC关闭RRPP协议

**在SWC上配置：**

**[SWC-rrpp-domain1] control-vlan 4093**

#### 步骤二：故障分析及信息收集

**在SWC上查看运行情况：**

<**SWA**>**display rrpp verbose domain 1**

**Domain ID : 1**

**Control VLAN : Primary 4092, Secondary 4093**

**Protected VLAN: Reference instance 1**

**Hello timer : 1 seconds, Fail timer: 3 seconds**

**Fast detection status: Disabled**

**Fast-Hello timer: 20 ms, Fast-Fail timer: 60 ms**

**Fast-Edge-Hello timer: 10 ms, Fast-Edge-Fail timer: 30 ms**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Ring state : Failed**

**Enable status : Yes, Active status: Yes**

**Primary port : GE1/0/1 Port status: UP**

**Secondary port: GE1/0/2 Port status: UP**

**发现主端口与副端口同时打开，那么可能有两个原因：**

**端口处于非正常状态；**

**RRPP环上有节点没有开启RRPP协议。**

**在同一RRPP环上的节点的域ID或控制VLAN ID不同**

**针对原因3，可以直接查看控制VLAN ID信息：**

**[SWC]display RRPP brief**

**Brief information on interfaces in route mode:**

**Link: ADM - administratively down; Stby - standby**

**Protocol: (s) - spoofing**

**Interface Link Protocol Primary IP Description**

**InLoop0 UP UP(s) --**

**MGE0/0/0 DOWN DOWN --**

**NULL0 UP UP(s) --**

**REG0 UP -- --**

**Brief information on interfaces in bridge mode:**

**Link: ADM - administratively down; Stby - standby**

**Speed: (a) - auto**

**Duplex: (a)/A - auto; H - half; F - full**

**Type: A - access; T - trunk; H - hybrid**

**Interface Link Speed Duplex Type PVID Description**

**FGE1/0/53 DOWN 40G A A 1**

**FGE1/0/54 DOWN 40G A A 1**

**GE1/0/1 UP 1G(a) F(a) T 1**

**GE1/0/2 UP 1G(a) F(a) T 1**

**发现SWC物理端口正常，其他设备同此操作；**

**在SWC也通过命令display rrpp statistics domain 1查看状态信息：**

**[SWC]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Transit**

**Active status : No**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 0 0 0 0 0**

**In 0 0 0 0 0 0 0**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 0 0 0 0 0**

**In 0 0 0 0 0 0 0**

**发现SWC的Active status为No，因此判断为RRPP协议未开启。**

#### 步骤三：故障排除

**在SWC上配置：**

**[SWC-rrpp-domain1] control-vlan 4092**

**观察RTC的IP路由表：**

**[SWC]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Transit**

**Active status : Yes**

**Primary port : GE1/0/1**

**发现SWC的Active status 为 Yes，故障排除。**

最后修改：2022 年 11 月 08 日

如果觉得我的文章对你有用，请随意赞赏

热门文章
随机文章

IP和TCP抓包分析实验
评论数： 0
OSPF实验
评论数： 0
RIP实验
评论数： 0
Telnet配置实验
评论数： 0
Vlan和Trunk实验
评论数： 0

了解一下Web服务原理
评论数： 0
SSH软件建议
评论数： 0
RIP实验
评论数： 0
H3CNE(GB0-191)题库分享
评论数： 0
交换机端口安全实验
评论数： 0

RRPP相交环配置及排错

阿勇 • 2022 年 11 月 08 日

# 实验RRPP相交环配置及排错

## 实验目的

**完成本实验，您应该能够：**

* **掌握RRPP相交环配置方法**
* **掌握RRPP协议运行情况**

## 实验拓扑图及IP规划

**实验拓扑图**

![](/img/356b5523c5d531da04a3bffefbbff6ff.png?lastModify=1667872504)

**图1 RRPP单环配置及排错**

**IP地址规划：**

**表1 RRPP单环配置及排错**

## 实验过程

### 实验任务一：RRPP单环配置

#### 步骤一：基本配置

**按照图1搭建实验环境，给设备改名，根据表1为所有设备配置相应VLAN，配置参考基本实验配置。**

#### 步骤二：创建MST域

**配置SWA：**

**[SWA]vlan 1 to 30**

**[SWA]stp region-configuration**

**[SWA-mst-region]instance 1 vlan 1 to 30**

**[SWA-mst-region]active region-configuration**

**配置SWB：**

**[SWB]vlan 1 to 30**

**[SWB]stp region-configuration**

**[SWB-mst-region] instance 1 vlan 1 to 30**

**[SWB-mst-region] active region-configuration**

**配置SWC：**

**[SWC]vlan 1 to 30**

**[SWC]stp region-configuration**

**[SWC-mst-region] instance 1 vlan 1 to 30**

**[SWC-mst-region] active region-configuration**

**配置SWD：**

**[SWD] vlan 1 to 30**

**[SWD]stp region-configuration**

**[SWD-mst-region] instance 1 vlan 1 to 30**

**[SWD-mst-region] active region-configuration**

**配置SWE：**

<**SWE**>** system-view**

**[SWE] vlan 1 to 30**

**[SWE] stp region-configuration**

**[SWE-mst-region] instance 1 vlan 1 to 30**

**[SWE-mst-region] active region-configuration**

**[SWE-mst-region] quit**

#### 步骤三：设置端口类型为TRUNK

**分别在端口G1/0/1和G1/0/2上配置物理连接状态up/down抑制时间为0 秒（即不抑制），关闭生成树协议，并将端口配置为 Trunk 端口且允许 VLAN 1～30 通过：**

**配置SWA：**

**[SWA]interface GigabitEthernet 1/0/1**

**[SWA-GigabitEthernet1/0/1]link-delay 0**

**[SWA-GigabitEthernet1/0/1]undo stp enable**

**[SWA-GigabitEthernet1/0/1]port link-type trunk**

**[SWA-GigabitEthernet1/0/1]port trunk permit vlan 1 to 30**

**[SWA]interface GigabitEthernet 1/0/2**

**[SWA-GigabitEthernet1/0/2]link-delay 0**

**[SWA-GigabitEthernet1/0/2]undo stp enable**

**[SWA-GigabitEthernet1/0/2]port link-type trunk**

**[SWA-GigabitEthernet1/0/2]port trunk permit vlan 1 to 30**

**配置SWB：**

**[SWB]interface GigabitEthernet1/0/1**

**[SWB-GigabitEthernet1/0/1] port link-mode bridge**

**[SWB-GigabitEthernet1/0/1] port link-type trunk**

**[SWB-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30**

**[SWB-GigabitEthernet1/0/1] link-delay 0**

**[SWB-GigabitEthernet1/0/1] undo stp enable**

**[SWB-GigabitEthernet1/0/1]interface GigabitEthernet 1/0/2**

**[SWB-GigabitEthernet1/0/2] port link-mode bridge**

**[SWB-GigabitEthernet1/0/2] port link-type trunk**

**[SWB-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30**

**[SWB-GigabitEthernet1/0/2] link-delay 0**

**[SWB-GigabitEthernet1/0/2] undo stp enable**

**配置SWC：**

**[SWC]interface GigabitEthernet1/0/1**

**[SWC-GigabitEthernet1/0/1] port link-mode bridge**

**[SWC-GigabitEthernet1/0/1] port link-type trunk**

**[SWC-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30**

**[SWC-GigabitEthernet1/0/1] link-delay 0**

**[SWC-GigabitEthernet1/0/1] undo stp enable**

**[SWC-GigabitEthernet1/0/1]interface GigabitEthernet 1/0/2**

**[SWC-GigabitEthernet1/0/2] port link-mode bridge**

**[SWC-GigabitEthernet1/0/2] port link-type trunk**

**[SWC-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30**

**[SWC-GigabitEthernet1/0/2] link-delay 0**

**[SWC-GigabitEthernet1/0/2] undo stp enable**

**配置SWD：**

**[SWD]interface GigabitEthernet1/0/1**

**[SWD-GigabitEthernet1/0/1] port link-mode bridge**

**[SWD-GigabitEthernet1/0/1] port link-type trunk**

**[SWD-GigabitEthernet1/0/1] port trunk permit vlan 1 to 30**

**[SWD-GigabitEthernet1/0/1] link-delay 0**

**[SWD-GigabitEthernet1/0/1] undo stp enable**

**[SWD-GigabitEthernet1/0/1]interface GigabitEthernet 1/0/2**

**[SWD-GigabitEthernet1/0/2] port link-mode bridge**

**[SWD-GigabitEthernet1/0/2] port link-type trunk**

**[SWD-GigabitEthernet1/0/2] port trunk permit vlan 1 to 30**

**[SWD-GigabitEthernet1/0/2] link-delay 0**

**[SWD-GigabitEthernet1/0/2] undo stp enable**

**配置SWE：**

**[SWE] interface ethernet 1/0/1**

**[SWE-Ethernet1/0/1] undo link-delay**

**[SWE-Ethernet1/0/1] undo stp enable**

**[SWE-Ethernet1/0/1] qos trust dot1p**

**[SWE-Ethernet1/0/1] port link-type trunk**

**[SWE-Ethernet1/0/1] port trunk permit vlan 1 to 30**

**[SWE-Ethernet1/0/1] quit**

**[SWE] interface ethernet 1/0/2**

**[SWE-Ethernet1/0/2] undo link-delay**

**[SWE-Ethernet1/0/2] undo stp enable**

**[SWE-Ethernet1/0/2] qos trust dot1p**

**[SWE-Ethernet1/0/2] port link-type trunk**

**[SWE-Ethernet1/0/2] port trunk permit vlan 1 to 30**

**[SWE-Ethernet1/0/2] quit**

#### 步骤四：创建 RRPP 域

**将 VLAN 4092 配置为该域的主控制 VLAN，并将 MSTI 1 所映射的 VLAN 配置 为该域的保护 VLAN；**

**配置SWA：**

**[SWA] rrpp enable**

**[SWA] rrpp domain 1**

**[SWA-rrpp-domain1] control-vlan 4092**

**[SWA-rrpp-domain1] protected-vlan reference-instance 1**

**[SWA-rrpp-domain1] ring 1 node-mode master primary-port GigabitEthernet 1/0/1 secondary-port GigabitEthernet 1/0/2 level 0**

**[SWA-rrpp-domain1] ring 1 enable**

**[SWA-rrpp-domain1] quit**

**配置SWB：**

**[SWB] rrpp enable**

**[SWB]rrpp domain 1**

**[SWB-rrpp-domain1] control-vlan 4092**

**[SWB-rrpp-domain1] protected-vlan reference-instance 1**

**[SWB-rrpp-domain1]ring 1 node-mode transit primary-port GigabitEthernet1/0/1 secondary-port GigabitEthernet1/0/2 level 0**

**[SWB-rrpp-domain1] ring 1 enable**

**[SWB-rrpp-domain1] ring 2 node-mode edge edge-port ethernet 1/0/3**

**[SWB-rrpp-domain1] ring 2 enable**

**[SWB-rrpp-domain1] quit**

**配置SWC：**

**[SWC] rrpp enable**

**[SWC]rrpp domain 1**

**[SWC-rrpp-domain1] control-vlan 4092**

**[SWC-rrpp-domain1] protected-vlan reference-instance 1**

**[SWC-rrpp-domain1]ring 1 node-mode transit primary-port GigabitEthernet1/0/1 secondary-port GigabitEthernet1/0/2 level 0**

**[SWC-rrpp-domain1] ring 1 enable**

**[SWC-rrpp-domain1] ring 2 node-mode assistant-edge edge-port ethernet 1/0/3**

**[SWC-rrpp-domain1] ring 2 enable**

**[SWC-rrpp-domain1] quit**

**配置SWD：**

**[SWD] rrpp enable**

**[SWD]rrpp domain 1**

**[SWD-rrpp-domain1] control-vlan 4092**

**[SWD-rrpp-domain1] protected-vlan reference-instance 1**

**[SWD-rrpp-domain1]ring 1 node-mode transit primary-port GigabitEthernet1/0/1 secondary-port GigabitEthernet1/0/2 level 0**

**[SWD-rrpp-domain1] ring 1 enable**

**[SWD-rrpp-domain1] quit**

**配置SWE：**

**[SWE] rrpp domain 1**

**[SWE-rrpp-domain1] control-vlan 4092**

**[SWE-rrpp-domain1] protected-vlan reference-instance 1**

**[SWE-rrpp-domain1] ring 2 node-mode master primary-port ethernet 1/0/1 secondary-port ethernet 1/0/2 level 1**

**[SWE-rrpp-domain1] ring 2 enable**

**[SWE-rrpp-domain1] quit**

**[SWE] rrpp enable**

#### 步骤五：显示RRPP运行情况

**配置完成后，用户可以使用 display 命令显示各设备上 RRPP 的配置和运行情况**

**[SWA]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 242 0 1 0 0 0 243**

**In 0 0 1 0 0 0 1**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 0 0 0 0 0**

**[SWB]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 367 0 1 0 0 0 368**

**In 0 0 0 0 0 0 0**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 0 0 0 0 0**

**[SWC]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-----------------------------------------------------------------------------**

**Out 966 0 1 0 0 0 967**

**In 0 0 1 0 0 0 1**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-----------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 1 0 0 0 1**

**[SWD]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Active status : Yes**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 1055 0 1 0 0 0 1056**

**In 0 0 0 0 0 0 0**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 1 0 0 0 1**

**In 0 0 1 0 0 0 1**

### 实验任务二：主节点收不到Hello报文排错

#### 步骤一：把SWC关闭RRPP协议

**在SWC上配置：**

**[SWC-rrpp-domain1] control-vlan 4093**

#### 步骤二：故障分析及信息收集

**在SWC上查看运行情况：**

<**SWA**>**display rrpp verbose domain 1**

**Domain ID : 1**

**Control VLAN : Primary 4092, Secondary 4093**

**Protected VLAN: Reference instance 1**

**Hello timer : 1 seconds, Fail timer: 3 seconds**

**Fast detection status: Disabled**

**Fast-Hello timer: 20 ms, Fast-Fail timer: 60 ms**

**Fast-Edge-Hello timer: 10 ms, Fast-Edge-Fail timer: 30 ms**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Master**

**Ring state : Failed**

**Enable status : Yes, Active status: Yes**

**Primary port : GE1/0/1 Port status: UP**

**Secondary port: GE1/0/2 Port status: UP**

**发现主端口与副端口同时打开，那么可能有两个原因：**

**端口处于非正常状态；**

**RRPP环上有节点没有开启RRPP协议。**

**在同一RRPP环上的节点的域ID或控制VLAN ID不同**

**针对原因3，可以直接查看控制VLAN ID信息：**

**[SWC]display RRPP brief**

**Brief information on interfaces in route mode:**

**Link: ADM - administratively down; Stby - standby**

**Protocol: (s) - spoofing**

**Interface Link Protocol Primary IP Description**

**InLoop0 UP UP(s) --**

**MGE0/0/0 DOWN DOWN --**

**NULL0 UP UP(s) --**

**REG0 UP -- --**

**Brief information on interfaces in bridge mode:**

**Link: ADM - administratively down; Stby - standby**

**Speed: (a) - auto**

**Duplex: (a)/A - auto; H - half; F - full**

**Type: A - access; T - trunk; H - hybrid**

**Interface Link Speed Duplex Type PVID Description**

**FGE1/0/53 DOWN 40G A A 1**

**FGE1/0/54 DOWN 40G A A 1**

**GE1/0/1 UP 1G(a) F(a) T 1**

**GE1/0/2 UP 1G(a) F(a) T 1**

**发现SWC物理端口正常，其他设备同此操作；**

**在SWC也通过命令display rrpp statistics domain 1查看状态信息：**

**[SWC]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Transit**

**Active status : No**

**Primary port : GE1/0/1**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 0 0 0 0 0**

**In 0 0 0 0 0 0 0**

**Secondary port: GE1/0/2**

**Fast-Hello packets: 0 Sent, 0 Received**

**Fast-Edge-Hello packets: 0 Sent, 0 Received**

**Direct Hello Link Common Complete Edge Major Total**

**down flush FDB flush FDB hello fault**

-**-------------------------------------------------------------------------**

**Out 0 0 0 0 0 0 0**

**In 0 0 0 0 0 0 0**

**发现SWC的Active status为No，因此判断为RRPP协议未开启。**

#### 步骤三：故障排除

**在SWC上配置：**

**[SWC-rrpp-domain1] control-vlan 4092**

**观察RTC的IP路由表：**

**[SWC]display rrpp statistics domain 1**

**Ring ID : 1**

**Ring level : 0**

**Node mode : Transit**

**Active status : Yes**

**Primary port : GE1/0/1**

**发现SWC的Active status 为 Yes，故障排除。**
